Caprari MEC-A4/125A

Numéro du produit: 780473

Voir les pièces

3 419,00 €Sans TVA

Par unité

Disponibilité: en rupture de stockDemander les délais de livraison

Délai de livraison prévu après la commande: 2-3 semaines

Pressure connection: DN125
Suction connection: DN150
Power reduction (max.): 97,2 kW

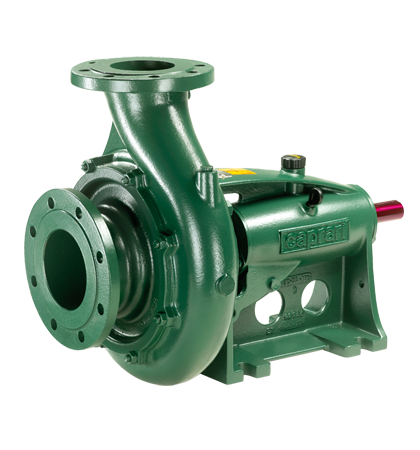

Horizontal centrifugal single stage pumps. Made with cast iron hydraulics and steel shaft. They can be coupled to both diesel engines and electric motors with 2 and 4 poles. Both packing and mechanical seals are available. A particularly versatile pump that is used in water supply, industrial, irrigation and fire-fighting applications.

- Not self-priming
- Without flexible coupling

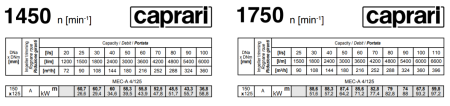

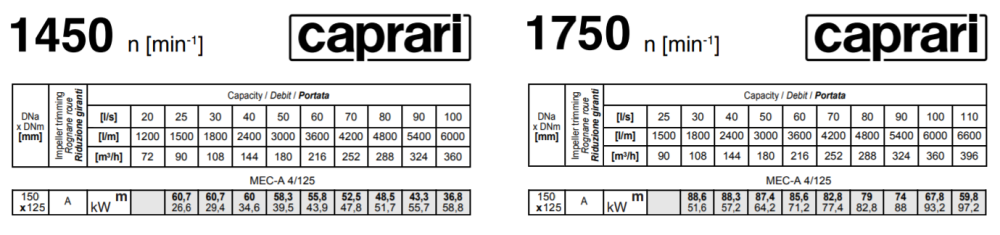

Capacity (1450 rpm)
90m3 - 6.0 bar
360m3 - 3.6 bar

Capacity (1750 rpm)
108m3 - 8.8 bar
396m3 - 5.9 bar

Technical specifications Caprari MEC-A.pdf Partslist - Caprari MEC-A4 125A.pdf
